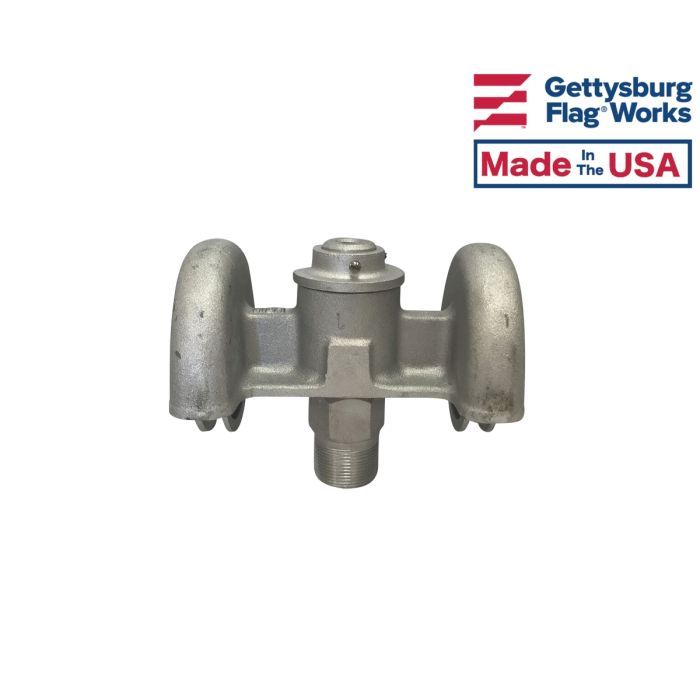

Heavy Duty Double pulley rotating truck for external halyard poles -for use with two halyards.
Cast aluminum constrution with ball bearing swivel action
1.25" NPT spindle for use with standard flagpole receptacle
Fits oversized flagpole top diameters of up to 5.5"
Pulley accepts 3/8" max halyard diameter
Tapped to accept standard 1/2" -13NC finial threading
Made in USA
Details
Cast Aluminum construction with a 3 3/4" outside diameter aluminum pulleys on 1/2" stainless steel axles. This truck is designed to be used on flagpoles that have up to a 5 1/2" outside diameter with female fitting (below) installed. The bottom of the spindle has a 1 1/4" NPT threading and is screwed into the top of the flagpole while the top spindle is designed to accept an ornament with a spindle threading of 1/2"-13NC as standard but can be supplied with other sizes of threading. The ornament is secured to the truck with a 1/4"-20NC stainless steel set screw. The truck body rotates on a 26 stainless steel ball bearings on cast races. Maximum halyard diameter is 3/8".
