Flagpole Ground Sleeves with Steel Lightning Spike

Skip to the end of the images gallery

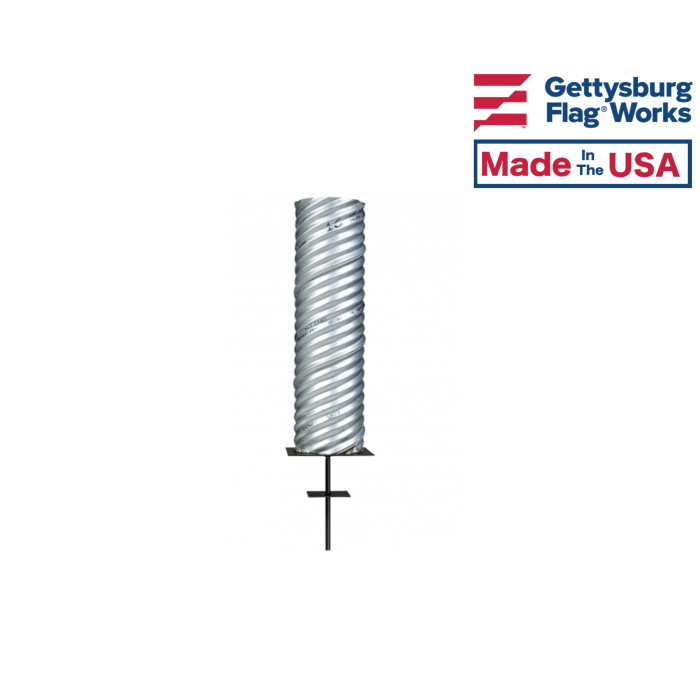

Ground Sleeve with Steel Lightning Spike

Skip to the beginning of the images gallery

Flagpole Ground Sleeves with Steel Lightning Spike

In stock

Only %1 left

SKU

gfwaGroundSleeveLightningSpike

Starting at $369.95

Be the first to review this product

Ground Sleeves with Steel Lightning Spike are designed for use in Ground Set flagpole installations.

Sized based upon the exposed Height of the flagpole (ground sleeve should be 10% of the exposed height) and the Base diamter of the flagpole (measured at widest bottom part before the taper).

Made of galvanized 16 gauge corrugated steel tube
Centering wedges are welded into the base to assist in plumb installations
Design incorporates a steel base plate and steel lightning spike 6” below the main steel support plate, allowing the foundation to surround the sleeve
Fabricated USA
Height sizing:
- 20' pole sleeves have 2' long galvanized tube (plus lightning spike)
- 25' pole sleeves have 2.5' long galvanized tube (plus lightning spike)
- 30' pole sleeves have 3' long galvanized tube (plus lightning spike)
- 35' pole sleeves have 3.5' long galvanized tube (plus lightning spike)
- 40' pole sleeves have 4' long galvanized tube (plus lightning spike)
- 45' pole sleeves have 4.5' long galvanized tube (plus lightning spike)
- 50' pole sleeves have 5' long galvanized tube (plus lightning spike)
- 60' pole sleeves have 6' long galvanized tube (plus lightning spike)
- 65' pole sleeves have 6.5' long galvanized tube (plus lightning spike)
- 70' pole sleeves have 7' long galvanized tube (plus lightning spike)
- 75' pole sleeves have 7.5' long galvanized tube (plus lightning spike)
- 80' pole sleeves have 8' long galvanized tube (plus lightning spike)
Diameter sizing:
- 4" Butt (base) diameter flagpole sleeves will have 6" galvanized tube opening
- 5" Butt diameter flagpole sleeves will have 8" galvanized tube opening
- 6" and 7" Butt diameter flagpole sleeves will have 10" galvanized tube opening
- 8" Butt diameter flagpole sleeves will have 12" galvanized tube opening
- 10" and 12" Butt diameter flagpole sleeves will have 15" galvanized tube opening

Please note: Expedited shipping is not always available for this item. Please call us if you need this item expedited. Larger sleeves may ship freight.

Details

Introducing Our Most Durable Ground Sleeve For Flag Poles

A reliable solution designed from Corrugated Steel along with the Lightning spike, also made of steel. This Pole Ground sleeve is created from 2 main pieces. In order to enhance stability, our top layer is a corrugated steel tube that is manufactured to include a thick steel base plate, steel wedges to make plumb installations a bit easier for you! The 16 gauge steel top piece is complimented by the bottom grounding spike that is threaded to a 3/4″ diameter. Concrete that you pour will completely surround this sleeve with the help of our 6" x 6" steel set plate!

This pole sleeve is constructed from high-quality Steel making your flagpole stand strong and as long as you want it! A secure hold that isn't letting go any time soon!

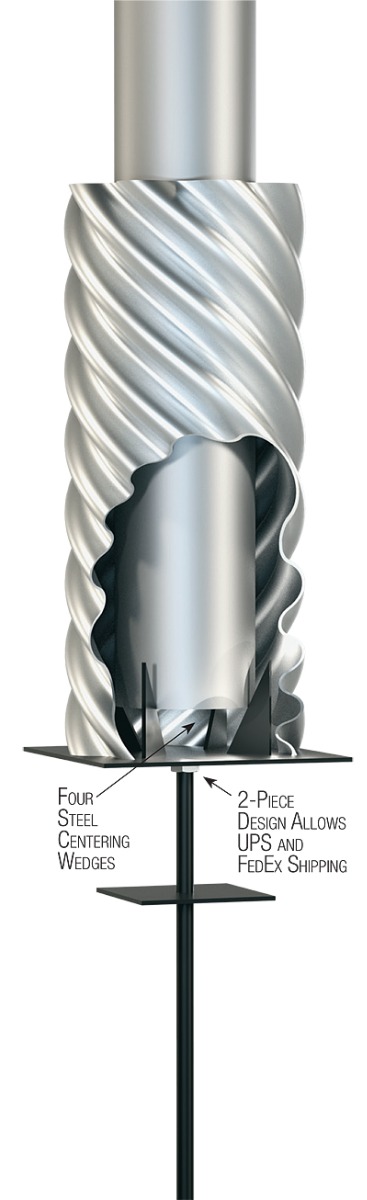

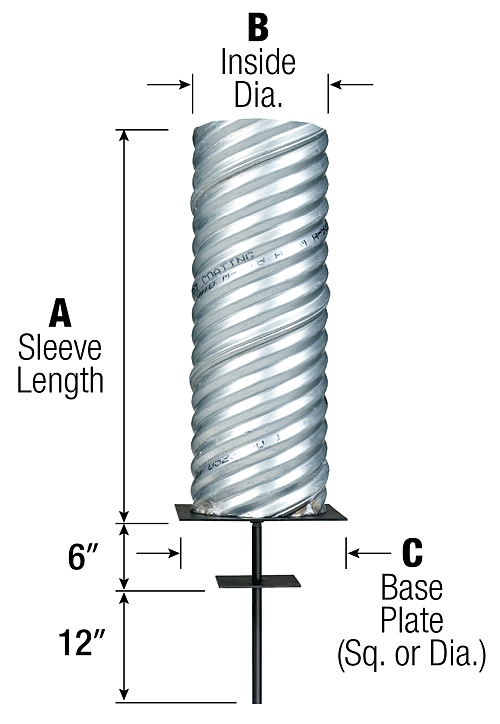

Additionally, this installation process is simple and easy! It is specially designed for easy installation. It includes a user-friendly design that allows you to set up your flagpole quickly and securely. The exterior features a weather-resistant coating, protecting it from corrosion, rust, and other environmental factors, ensuring that your flagpole remains in optimal condition for years to come. Take a look at these diagrams of the construction and build of these ground sleeves.
