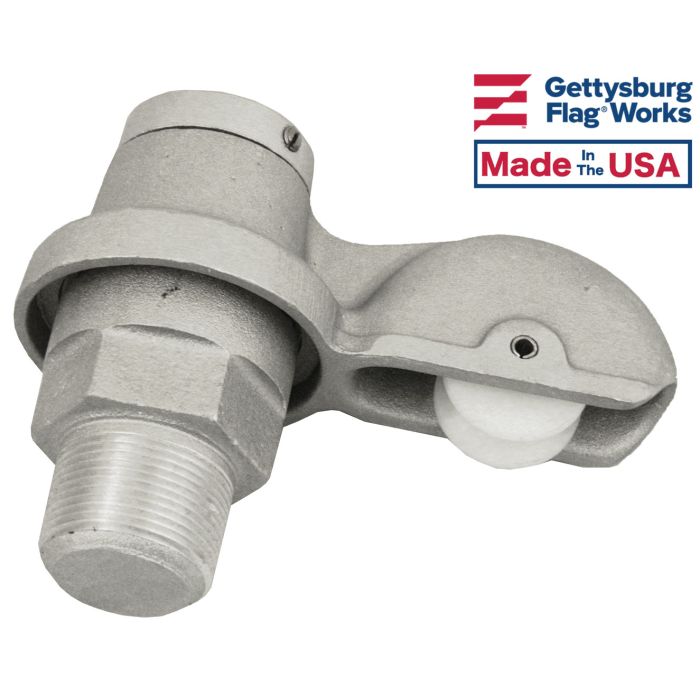

Single Pulley Revolving Truck

Replacement truck for your external halyard flagpole. Revolving threaded style with a single pulley made from machined aluminum.

  • Choose from various color finish options
  • For up to a 3.5" diameter outside top diameter pole w/female fitting installed
  • Cast Aluminum housing
  • 1.5" outside diameter cast nylon pulley on 1/4" stainless steel axle
  • Max halyard diameter of 5/16"
  • Truck Spindle: 1.25" NPT threading
  • Accepts ornament with spindle threading of 1/2"-13NC, secured by 1 stainless steel set screw (1/4:-20NC)
    • < li>Movement: utilizes self-lubricating ball bearings assemblies for ease of rotation, product life and strength.
  • Made in USA
    • More...
    write a review
    • Cast Aluminum construction. For ease of rotation, product life and strength, these trucks utilize self-lubricating ball bearing assemblies. The recommended maximum halyard diameter is 5/16".
    • Pole Info: Designed to be used on flagpoles that have up to a 3.5" outside diameter with female fitting installed. The bottom of the spindle has a 1.25" NPT threading and is screwed into the top of the flagpole.
    • Ornament Info: The top spindle is designed to accept an ornament with a spindle threading of 1/2" - 13NC as standard but can be supplied with other sizes of threading. The ornament is secured to the truck with a 1/4"-20NC stainless steel set screw.
    • Pulley Info: 2" outside diameter cast nylon pulley on a 1/4" stainless steel axle.

    Write Your Own Review

    You're reviewing: Single Pulley Revolving Truck

    •   1 star 2 stars 3 stars 4 stars 5 stars
      Quality
      Value
    Metal Finish Item Code Price
    Silver e340136
    $74.95
    Bronze e340137
    $75.95
    White e340138
    $75.95
    Black e340139
    $75.95
